產品展示 >> 電動機保護 >> XRNMB-3.6KV/7.2KV |
|
 |

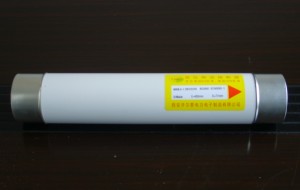

Ratings 等級: Volts 電壓: 3.6/7.2KV AC ; Amps 電流 70~700A .Breaking Capacity 分斷能力: 50kA - 63kA.
產品可與負荷開關、真空接觸器等配套使用，廣泛應用于電力變壓器及其它電力設備的過載或短路保護。
|
| 技術參數 |
| 尺寸DIN Size |
額定電壓Rated voltage |
類別Class |
標準Standard |
| L=254 mm |
AC 3.6 kV |
后備保護Back up |
BS2692-1、IEC60282-1 |
|
| |
開爾泰型號
Kaiert Type |
額定電流
Rated Current |
SIBA Type |
British
Type |
尺寸Length
L(mm) |
尺寸Length
D(mm) |
分斷能力
Rated breaking Current |
功耗
Power Loss |
熔斷I2t @3.6KV
(A2S) |
| XRNMB-3.6 |
70A |
30 456 55.2R |
WFKHO-3.6 |
254 |
Φ76 |
50KA |
23W |
16000 |
| XRNMB-3.6 |
100A |
30 456 55.3R |
WFKHO-3.6 |
254 |
Φ76 |
50KA |
31W |
25000 |
| XRNMB-3.6 |
130A |
30 456 55.4R |
WFKHO-3.6 |
254 |
Φ76 |
50KA |
36W |
29000 |
| XRNMB-3.6 |
150A |
30 456 55.5R |
WFKHO-3.6 |
254 |
Φ76 |
50KA |
39W |
65000 |
| XRNMB-3.6 |
170A |
30 456 55.6R |
WFKHO-3.6 |
254 |
Φ76 |
50KA |
44W |
115000 |
| XRNMB-3.6 |
200A |
30 456 55.9R |
WFKHO-3.6 |
254 |
Φ76 |
50KA |
46W |
295000 |
| XRNMB-3.6 |
230A |
30 456 55.12R |
WFKHO-3.6 |
254 |
Φ76 |
50KA |
54W |
559000 |
| XRNMB-3.6 |
390A* |
30 457 55.18R |
WFKHO-3.6 |
254 |
Φ76 |
50KA |
57W |
665000 |
| XRNMB-3.6 |
450A* |
30 457 55.24R |
WFKHO-3.6 |
254 |
Φ76 |
50KA |
61W |
1414000 |
| XRNMB-3.6 |
650A** |
30 458 55.36R |
WFKHO-3.6 |
254 |
Φ76 |
50KA |
70W |
2828000 |
| XRNMB-3.6 |
700A** |
30 458 55.48R |
WFKHO-3.6 |
254 |
Φ76 |
50KA |
70W |
2828000 |
|
| * 為雙并連接; **為三并連接 |
| |
| 尺寸DIN Size |
額定電壓Rated voltage |
類別Class |
標準Standard |
| E=403 mm |
AC 7.2 kV |
后備保護Back up |
BS2692-1、IEC60282-1 |
開爾泰型號
Kaiert Type |
額定電流
Rated Current |
SIBA Type |
British
Type |
尺寸Length
L(mm) |
尺寸Length
D(mm) |
分斷能力
Rated breaking Current |
功耗
Power Loss |
熔斷I2t @3.6KV(A2S) |
| XRNMB-7.2 |
70A |
30 459 55.2R |
WFKHO-3.6 |
403 |
Φ76 |
50KA |
23W |
16000 |
| XRNMB-7.2 |
100A |
30 459 55.3R |
WFKHO-3.6 |
403 |
Φ76 |
50KA |
31W |
25000 |
| XRNMB-7.2 |
130A |
30 459 55.4R |
WFKHO-3.6 |
403 |
Φ76 |
50KA |
36W |
29000 |
| XRNMB-7.2 |
150A |
30 459 55.5R |
WFKHO-3.6 |
403 |
Φ76 |
50KA |
39W |
65000 |
| XRNMB-7.2 |
170A |
30 459 55.6R |
WFKHO-3.6 |
403 |
Φ76 |
50KA |
44W |
115000 |
| XRNMB-7.2 |
200A |
30 459 55.9R |
WFKHO-3.6 |
403 |
Φ76 |
50KA |
46W |
295000 |
| XRNMB-7.2 |
230A |
30 459 55.12R |
WFKHO-3.6 |
403 |
Φ76 |
50KA |
54W |
559000 |
| XRNMB-7.2 |
390A* |
30 460 55.18R |
WFKHO-3.6 |
403 |
Φ76 |
50KA |
57W |
665000 |
| XRNMB-7.2 |
450A* |
30 460 55.24R |
WFKHO-3.6 |
403 |
Φ76 |
50KA |
61W |
1414000 |
| XRNMB-7.2 |
650A** |
30 461 55.36R |
WFKHO-3.6 |
403 |
Φ76 |
50KA |
70W |
2828000 |
| XRNMB-7.2 |
700A** |
30 461 55.48R |
WFKHO-3.6 |
403 |
Φ76 |
50KA |
70W |
2828000 |
|
| * 為雙并連接; **為三并連接 |
| |

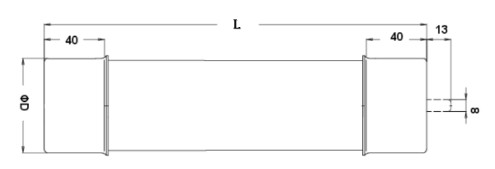

Dimensions 安裝尺寸 (mm): |
 |
| |

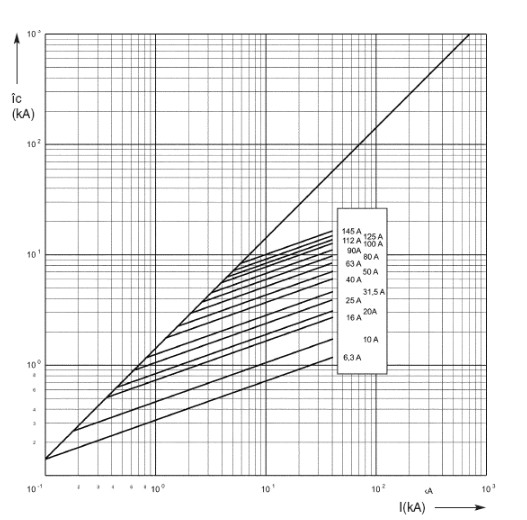

Time Current Characteristics 時間---電流特性曲線: |
 |
|
|
