產品展示 >> 變壓器保護 >> XRNTJ-10KV/17.5KV |
|
 |
Ratings 等級: Volts 電壓: 10/17.5KV AC Amps 電流:6.3~200A .Breaking Capacity 分斷能力: 50kA - 63kA.
產品可與負荷開關、真空接觸器等配套使用，廣泛應用于電力變壓器及其它電力設備的過載或短路保護。
|
| 技術參數
|

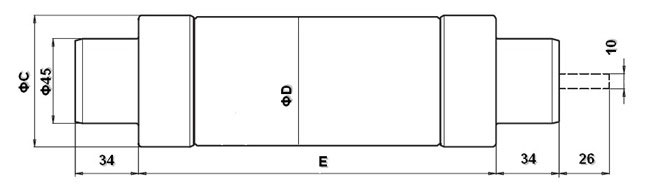

| 尺寸DIN Size |
額定電壓Rated voltage |
類別Class |
標準Standard |
| E=292 mm |
AC 10/17.5 kV |
后備保護Back up |
DIN 43625 · IEC 60282-1 |
|
開爾泰型號
Kaiert Type |
額定電流
Rated Current |
SIBA Type |
British
Type |
尺寸Length
D(mm) |
分斷能力
Rated breaking Current |
最小分斷能力
Mininum Rated breaking Current |
功耗
Power Loss |
熔斷I2t
@3KV
(A2S) |
熔斷I2t
@7.2KV
(A2S) |
| XRNTJ8-10/17.5 |
6.3A |
30 255 13 |
SDLDJ-10/17.5 |
Φ53 |
63KA |
22A |
21W |
210 |
360 |
| XRNTJ8-10/17.5 |
10A |
30 255 13 |
SDLDJ-10/17.5 |
Φ53 |
63KA |
34A |
38W |
350 |
560 |
| XRNTJ8-10/17.5 |
16A |
30 255 13 |
SDLDJ-10/17.5 |
Φ53 |
63KA |
56A |
37W |
1100 |
2000 |
| XRNTJ8-10/17.5 |
20A |
30 221 13 |
SDLDJ-10/17.5 |
Φ67 |
63KA |
70A |
40W |
2900 |
4800 |
| XRNTJ8-10/17.5 |
25A |
30 221 13 |
SDLDJ-10/17.5 |
Φ67 |
63KA |
90A |
56W |
4900 |
7500 |
| XRNTJ8-10/17.5 |
31.5A |
30 221 13 |
SDLDJ-10/17.5 |
Φ67 |
63KA |
110A |
65W |
6600 |
12000 |
| XRNTJ8-10/17.5 |
40A |
30 221 13 |
SDLDJ-10/17.5 |
Φ67 |
63KA |
140A |
84W |
12000 |
19000 |
| XRNTJ8-10/17.5 |
50A |
30 221 13 |
SDLDJ-10/17.5 |
Φ67 |
63KA |
170A |
101W |
20000 |
33000 |
| XRNTJ8-10/17.5 |
63A |
30 222 13 |
SDLDJ-10/17.5 |
Φ67 |
63KA |
210A |
106W |
40000 |
66000 |
| XRNTJ8-10/17.5 |
80A |
30 222 13 |
SDLDJ-10/17.5 |
Φ85 |
85KA |
280A |
137W |
78000 |
140000 |
| XRNTJ8-10/17.5 |
100A |
30 222 13 |
SDLDJ-10/17.5 |
Φ85 |
85KA |
320A |
182W |
130000 |
210000 |
| XRNTJ8-10/17.5 |
125A |
30 222 13 |
SDLDJ-10/17.5 |
Φ85 |
85KA |
390A |
235W |
180000 |
390000 |
| XRNTJ8-10/17.5 |
160A |
30 222 13 |
SDLDJ-10/17.5 |
Φ85 |
85KA |
600A |
290W |
330000 |
570000 |
|
| |
| 尺寸DIN Size |
額定電壓Rated voltage |
類別Class |
標準Standard |
| E=367 mm |
AC 10/17.5 kV |
后備保護Back up |
DIN 43625 · IEC 60282-1 |
|
開爾泰型號
Kaiert Type |
額定電流
Rated Current |
SIBA Type |
British
Type |
尺寸Length
D(mm) |
分斷能力
Rated breaking Current |
最小分斷能力
Mininum Rated breaking Current |
功耗
Power Loss |
熔斷I2t
@3KV
(A2S) |
熔斷I2t
@7.2KV
(A2S) |
| XRNTJ9-10/17.5 |
6.3A |
30 176 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
22A |
16W |
210 |
360 |
| XRNTJ9-10/17.5 |
10A |
30 176 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
34A |
28W |
350 |
560 |
| XRNTJ9-10/17.5 |
16A |
30 176 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
56A |
37W |
1100 |
2000 |
| XRNTJ9-10/17.5 |
20A |
30 176 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
70A |
40W |
2900 |
4800 |
| XRNTJ9-10/17.5 |
25A |
30 176 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
90A |
56W |
4900 |
7500 |
| XRNTJ9-10/17.5 |
31.5A |
30 177 13 |
SDMEJ-10/17.5 |
Φ67 |
63KA |
110A |
65W |
6600 |
12000 |
| XRNTJ9-10/17.5 |
40A |
30 177 13 |
SDMEJ-10/17.5 |
Φ67 |
63KA |
140A |
84W |
12000 |
19000 |
| XRNTJ9-10/17.5 |
50A |
30 177 13 |
SDMEJ-10/17.5 |
Φ67 |
63KA |
170A |
101W |
20000 |
33000 |
| XRNTJ9-10/17.5 |
63A |
30 177 13 |
SDMEJ-10/17.5 |
Φ67 |
63KA |
210A |
106W |
40000 |
66000 |
| XRNTJ9-10/17.5 |
80A |
30 178 13 |
SDMEJ-10/17.5 |
Φ85 |
63KA |
280A |
137W |
78000 |
140000 |
| XRNTJ9-10/17.5 |
100A |
30 178 13 |
SDMEJ-10/17.5 |
Φ85 |
63KA |
320A |
182W |
130000 |
210000 |
| XRNTJ9-10/17.5 |
125A |
30 178 13 |
SDMEJ-10/17.5 |
Φ85 |
63KA |
390A |
235W |
180000 |
390000 |
| XRNTJ9-10/17.5 |
160A |
30 178 13 |
SDMEJ-10/17.5 |
Φ85 |
63KA |
600A |
290W |
330000 |
570000 |
| XRNTJ9-10/17.5 |
200A |
30 178 14 |
SDMEJ-10/17.5 |
Φ85 |
50KA |
800A |
330W |
480000 |
704000 |
|
| |
| 尺寸DIN Size |
額定電壓Rated voltage |
類別Class |
標準Standard |
| E=442 mm |
AC 10/17.5 kV |
后備保護Back up |
DIN 43625 · IEC 60282-1 |
|
開爾泰型號
Kaiert Type |
額定電流
Rated Current |
SIBA Type |
British
Type |
尺寸Length
D(mm) |
分斷能力
Rated breaking Current |
最小分斷能力
Mininum Rated breaking Current |
功耗
Power Loss |
熔斷I2t
@3KV
(A2S) |
熔斷I2t
@7.2KV
(A2S) |
| XRNTJ10-10/17.5 |
6.3A |
30 231 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
22A |
21W |
210 |
360 |
| XRNTJ10-10/17.5 |
10A |
30 231 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
34A |
38W |
350 |
560 |
| XRNTJ10-10/17.5 |
16A |
30 231 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
56A |
37W |
1100 |
2000 |
| XRNTJ10-10/17.5 |
20A |
30 231 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
70A |
40W |
2900 |
4800 |
| XRNTJ10-10/17.5 |
25A |
30 231 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
90A |
56W |
4700 |
7500 |
| XRNTJ10-10/17.5 |
31.5A |
30 231 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
110A |
65W |
6600 |
12000 |
| XRNTJ10-10/17.5 |
40A |
30 231 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
140A |
84W |
12000 |
19000 |
| XRNTJ10-10/17.5 |
50A |
30 232 13 |
SDMEJ-10/17.5 |
Φ53 |
63KA |
170A |
101W |
20000 |
33000 |
| XRNTJ10-10/17.5 |
63A |
30 232 13 |
SDMEJ-10/17.5 |
Φ67 |
63KA |
210A |
106W |
40000 |
66000 |
| XRNTJ10-10/17.5 |
80A |
30 232 13 |
SDMEJ-10/17.5 |
Φ67 |
63KA |
280A |
137W |
78000 |
140000 |
| XRNTJ10-10/17.5 |
100A |
30 233 14 |
SDMEJ-10/17.5 |
Φ85 |
63KA |
320A |
182W |
130000 |
210000 |
| XRNTJ10-10/17.5 |
125A |
30 233 14 |
SDMEJ-10/17.5 |
Φ85 |
63KA |
390A |
235W |
180000 |
390000 |
| XRNTJ10-10/17.5 |
160A |
30 233 14 |
SDMEJ-10/17.5 |
Φ85 |
63KA |
600A |
290W |
330000 |
570000 |
| XRNTJ10-10/17.5 |
200A |
30 233 14 |
SDMEJ-10/17.5 |
Φ85 |
40KA |
800A |
330W |
480000 |
704000 |
|
|
|
